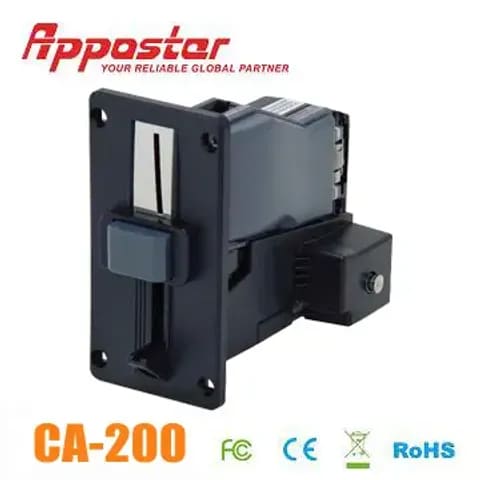

Coin Acceptor

Model No.
CA-200
Made in
Taiwan
Request for Quotation

    Steady and reliable

    Spec

    • Printer:POS Printer
    • Type:POS Accessories

    Key Features

    The CA-200 is designed as reliable coin acceptors which are able to work steadily in high temperature for high-security with acceptance rate up to 96% or greater.

    ● Wide working temperature for coin acceptance
    ● Coin sorter available
    ● Eight coin channels available at once
    ● Mechanical and electrical anti-string function
    ● Acceptance speed up to 3 coins per second

    Specification
    General
    Acceptance Rate
     96% or greater
    Accepting Speed
     Approx. 3 coin/sec
    Interface
     Pulse, RS232 (TTL level)
    Coin Parameters
     Diameter: 20mm~32mm
     Thickness: 1.2mm~3.2mm
    Electrical
    Power Source
     12V ±10% (10.8V ~ 13.2V DC)
    Power consumption
     Standby: 0.05A, 0.6W
     Operation: 0.2A, 2.4W
     Maximum: 0.5A, 6W
    Operation Environment
     Operation Temperature: -5°C ~ 60°C
     Storage Temperature: -20°C ~ 75°C
     Humidity: 30% ~ 85% RH (no condensation)
    Mechanical
    Outline Dimension
     147.5 x 72.4 x 124 mm
    Weight
     Approx. 0.35kg
