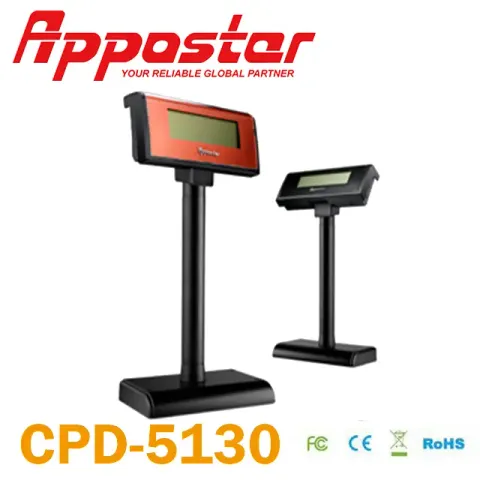

Customer Display (LCD)

Model No.
CPD-5130
Made in
Taiwan
Request for Quotation

    Easy integration on Appostar POS

    Spec

    • Printer:POS Printer,Receipt Printer
    • Type:POS Customer Displays / Monitors

    Key Features

    The customer pole display CPD-3000 and CPD-5000 series are born in latest design language. With its dual interface the CPD series is available in USB, serial or even exclusive USB + Serial and is highly flexible in any application.

    • Exclusive USB + Serial dual interface cable available
    • 0°~36° viewing angle
    • Easy integration on Appostar POS
    • Multiple command sets and code pages
    • Low power consumption
    • OPOS Driver

    Specification
    System
    Display Method
     Mono. Liquid Crystal Display
    Number of Characters
     30 columns x 4 / 2 lines in double height
     15 columns x 4 / 2 lines in double height
    Display Color
     Blue
    Brightness
     100 cd/m2
    Character Type
     I. 96 alphanumeric
     II. 13 sets of international character
     III. One set user downloadable character
     IV. One of the following languages is optional:
     ■ Traditional Chinese (BIG-5)
     ■ Simplified Chinese (GB2312)
     ■ Japanese (Shift-JIS)
     ■ Korean (KSC5610)
     ■ Thai
    Font Size
     8 x 16 / 8 x 32 alphanumeric
     16 x 16 / 16 x 32 multi byte characters
    Command Set
     1.BA63G 2.ESC / POS 3.WD-304
    Interface
     ■ RS-232:4800 / 9600 / 19200 / 38400 / 115200 bps
     ■ USB 2.0
    Power
     DC 7V~36V
    Power Consumption
     3~5W
    MTBF
     30,000 hrs
    Certification
     CE / FCC class A
    Rotation Angle
     Vertically: 36 degree ; Horizontal: 270 degree
    Environment
    Operation Temperature
    5~45°C
    Storage Temperature
     -20~70°C
    Operation Humidity
     15%~80% RH
    Storage Humidity
     10%~90% RH
    Physical Dimension
    Head (W x D x H)
     215 x 57 x 92 mm
    Support (H x Ø)
     Long: 250 x 34 mm ; Short: 117 x 34 mm
    Base (W x D x H)
     200 x 120 x 27 mm
    Weight (N.W.)
     0.8 kg
