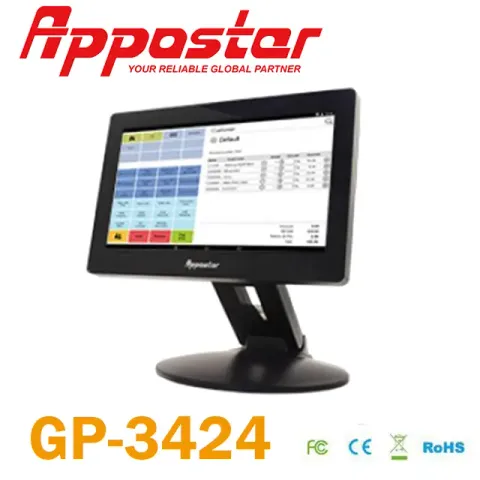

POS Terminal

Model No.
GP-3424
Made in
Taiwan
Request for Quotation

    Stylish elegant slim appearance

    Spec

    • Printer:POS Printer,Receipt Printer
    • Type:POS Customer Displays / Monitors

    Key Features

    The GP POS terminal with various platforms and its stylish elegant slim appearance is highly recommended for hospitality market.

    • Provides two RJ-45 LAN ports
    • Up-down angle adjustment
    • MSR / SCR and i-Button optional
    • VESA for wall-mount
    • 0°~85° Viewing angle



    Specification
    Model Name  GP-3424
    System
    Main board
     SBC-1900
    CPU
     Intel Celeron J1900 2.0GHz
    Graphic
     Intel HD Graphics
     Memory
     2GB DDR3 RAM
    Display Size
     11.6” TFT-LCD with Touch Panel
    Display Resolution
     1366 x 768
    HDD
     2.5” SATA HDD 320GB
    OS Compatibility
     Windows 7, Windows 8, Windows 10, POSReady , Linux Fedora 14
    I/O Interface
    Serial Port
     2 x COM Ports
    VGA Port
     1 x VGA (DB15)
    Speaker
     2 x Integrated 1.5 W Stereo Speaker
    Ethernet Port
     2 x RJ45 10M / 100M / 1G Base-T
    USB Port
     3 x USB 2.0 Type A
    DC Output
     1 x 12V / 2.5A DC Jack
    Optional Peripheral
    Magnetic Card Reader
     ISO 7811 option 1 / 2 / 3 track
    Finger Print
     512dpi x 8bit gray scale, Capture area: 14.6 x 18.1 mm
    i-button
     Dallas Key
    Wireless LAN
     802.11 b / g
    Customer Display
     VFD / LCD Customer Display
    Control / Indicator
    Power Button
     1
    Powering
    Power Supply
     AC 100V~240V / 60W Power Adapter (90W Power Adaptor optional)
    Environment
    EMC & Safety
     CE / FCC Class A
    Operating Temperature
     5 °C ~ 40 °C
    Storage Temperature
     -20 °C ~ 60 °C
    Operating Humidity
     15%~80% RH
    Storage Humidity
     20% ~90% RH
    Mechanical
    Housing Color
     Black
