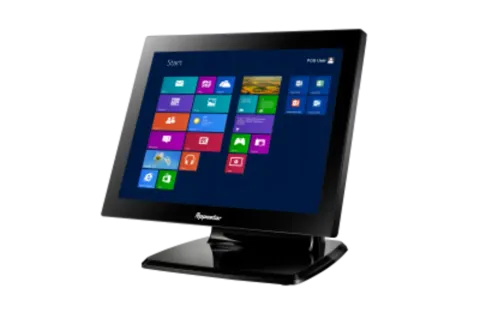

POS Terminal

Model No.
GP-3466
Made in
Taiwan
Request for Quotation

    Stylish elegant slim appearance

    Spec

    • Printer:POS Printer,Receipt Printer
    • Type:POS Customer Displays / Monitors

    Key Features

    The New GP-series models are elegant and powerful all-in-one systems, designed for the toughest retail and hospitality environments.
    It’s robust and compact system fits beautifully on any point of sale counter. It’s modular design features ensures guaranteed high serviceability.

    • Easy storage maintenance design
    • 2nd LCD creates interactive display
    • Splash-resistant on frontal
    • MSR / SCR and i-Button optional
    • Power Adaptor Compartment
    • VESA for wall-mount
    • 0°~85° Viewing angle



    Specification
    Model Name  GP-3466
    System
    Main Board
     IAT2-1900
    CPU
     Intel Celeron J1900 Quad Core CPU 2.0GHz
    Graphic
     Intel HD Graphic
    Memory
     2GB DDR3L RAM
     Display Size
     15 inch TFT-LCD with Resistive Touch (P-CAP touch Optional)
    Display Resolution
     1024 x 768
    HDD
     2.5 inch SATA HDD 320G
    Expansion
     2 x Mini PCI-E, 1 x SIM Card Slot
    OS Compatibility
    Win 7, Win 8, Win10, Linux
    External I/O Interface
    Serial Port
     2 x External COM ports
    Cash Drawer port
     1 x RJ11 with DC 12V (Optional)
    VGA Port
     1 x DB15 VGA
     Audio Port
     1 x Line in, 1 x Line out
    Ethernet Port
     1 x RJ45 10M / 100M / 1G Base-T
    USB Port
     5 x USB 2.0 Type A, 1 x USB 3.0 Type A
    Speaker
     2 x Integrated 1W Speaker
    DC output Jack
     1 x 12V/2.5A DC Jack
    Control / Indicator
    Power Button
     1
    Powering
    Power Supply
     AC 100V~240V / 60W Power Adapter
    Environment
    EMC & Safety
     CE / FCC Class A
    Operating Temperature
     5 °C ~ 40 °C
    Storage Temperature
     -20 °C ~ 60 °C
    Operating Humidity
     15%~80% RH
    Storage Humidity
     20% ~90% RH
    Mechanical
    House Color
     Black / White
