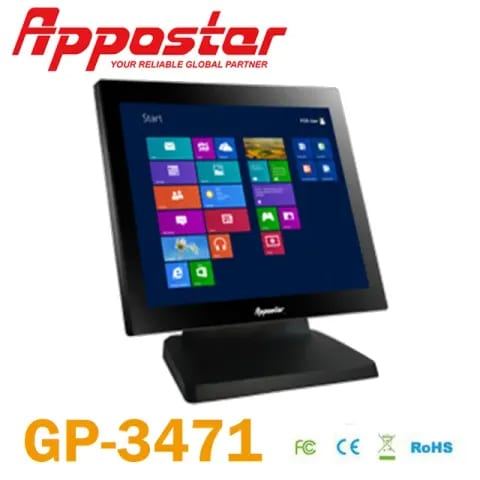

POS Terminal

Model No.
GP-3471
Made in
Taiwan
Request for Quotation

    Stylish elegant slim appearance

    Spec

    • Printer:POS Printer,Receipt Printer
    • Type:POS Customer Displays / Monitors

    Key Features

    The New GP-series models are elegant and powerful all-in-one systems, designed for the toughest retail and hospitality environments.
    It’s robust and compact system fits beautifully on any point of sale counter. It’s modular design features ensures guaranteed high serviceability.

    • Easy storage maintenance design
    • Splash-resistant on frontal
    • MSR / SCR and i-Button optional
    • VESA for wall-mount


    Model Name
    GP-3471
    System
    Main Board
    Mini-ITX
    CPU
    Intel® CoreTM i3-7020U
    Chipset
    Null
    Memory
    4GB DDR3 (MAX 8GB)
    Display
    15” TFT-LCD with LED backlight (1024 x 768)
    Touch Panel
    Resistive Touch (P-CAP touch Optional)
    HDD
    2.5” SATA HDD 320G
    Expansion
    2 x Mini PCIe slot
    OS Compatibility
    Windows 7, Windows 8, Windows 10
    External I/O Interface
    Serial Port
    3 x External COM Ports with 5V/12V selectable
    Cash Drawer Port
    1 x RJ11 with DC 12V (Optional)
    Video Port
    1 x HDMI, 1 x VGA (DB15)
    Audio Jack
    1 x Line-in, 1 x Line-out
    Speaker
    Ethernet Port
    1 x RJ45 10M / 100M / 1000M
    USB Port
    2 x USB 3.0 Type A
    4 x USB 2.0 Type A
    DC output Jack
    1 x 12V/2.5A
    Optional Peripheral
    Magnetic Card Reader
    ISO 7811 option 1/2/3 track
    Finger Print
    512dpi x 8bit gray scale, Capture area: 14.6 x 18.1 mm
    i-button
    Dallas Key
    Wireless LAN
    802.11 b/g
    Customer Display
    VFD / LCD Customer Display
    Second Display
    8 inch / 10 inch / 12 inch / 15 inch TFT-LCD display/non-touch
    Control / Indicator
    Power Button
    1
    Powering
    Power Supply
    AC 100V~240V / 60W power adapter (Optional 90W)
    Environment
    EMC & Safety
    CE / FCC Class A
    Operating Temperature
    5°C ~ 40°C
    Storage Temperature
    -20°C ~ 60°C
    Operating Humidity
    15%~80% RH
    Storage Humidity
    20% ~90% RH
    Mechanical
    Housing Color
    Black
    Construction
    ABS + SECC
    Dimension(WxDxH)
    400 x 225 x 320 mm
    Weight
    N.W. 8.5 kg
