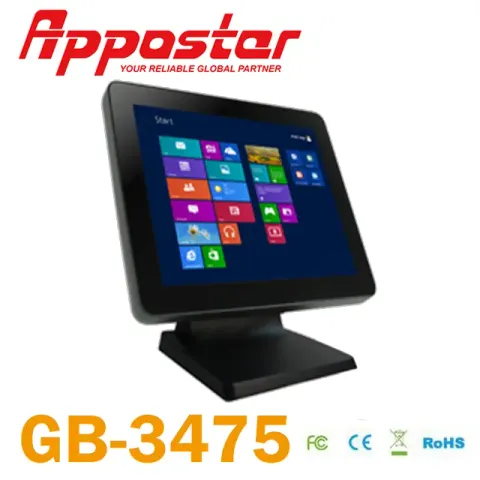

POS Terminal

Model No.
GP-3475
Made in
Taiwan
Request for Quotation

    Stylish elegant slim appearance

    Spec

    • Printer:POS Printer,Receipt Printer
    • Type:POS Customer Displays / Monitors

    Key Features

    The New GP-series models are elegant and powerful all-in-one systems, designed for the toughest retail and hospitality environments.
    It’s robust and compact system fits beautifully on any point of sale counter. It’s modular design features ensures guaranteed high serviceability.

    • Easy storage maintenance design
    • Splash-resistant on frontal
    • MSR / SCR and i-Button optional
    • VESA for wall-mount



    Specification
    Model Name GP-3475
    System
    CPU
     Intel processor i3-4010U (Dual Core 1.7GHz,Fanless,up to i3-5010U)
    Main Memory
     Onboard DDR3 4G (Extend up to 16G optional)
    HDD
     320GB HDD
     Display
     15 inch
    Aspect ratio
     4 : 3
    Style
     True Flat
    Touch Panel
     Projected Capacitive touch screen (Resistive touch screen optional)
    OS Compatibility
     Win7, Pos Ready7, Win8, XP, WinCE, Vista, Linux
    I/O Interface
    Extend interface
     USB 2.0 x 2, 2 x SATA 3.0, 2 x PCI-E
     (4G SIM card, 2.4G&5G wifi & Bluetooth module optional)
    Serial Port
     2 x COM (3 x COM optional)
    VGA Port
     Mini D-Sub 15-Pin VGA type and HDMI type
     Audio Port
     1 x Line-in, 1 x Line-out
    USB Port
     2 x USB 2.0 & 2 x USB 3.0
    LAN Port
     1 x RJ45 (2 x RJ45 optional)
    Cash Drawer Port
     1 x RJ11 (optional)
    Powering
    AC to DC power input
     100-240 VAC, 50/60 Hz
    Power Consumption
     Less than 60W
    Environment
    EMC & Safety
     CE/FCC RoHS (UL & GS customized)
    Operating Temperature
     5 °C ~ 40 °C
    Storage Temperature
     -20 °C ~ 60 °C
    Operating Humidity
     20%~80% RH
    Storage Humidity
     10% ~90% RH
    Mechanical
    Case/Bezel Color
     Black, Silvery, white (Customized)
    Shipping Carton
    Dimensions
     556 x 206 x 456 mm (with stand)
     470 x 210 x 420 mm (without stand)
    Weight
     Actual: 6.8 kg ; Shipping: 8.2 kg
    Mounting Options
     75 mm and 100mm VESA mount
