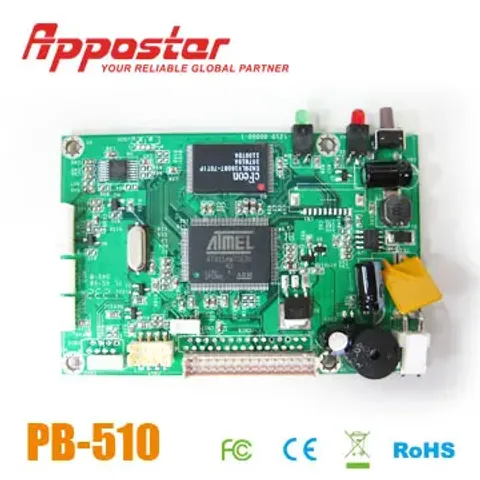

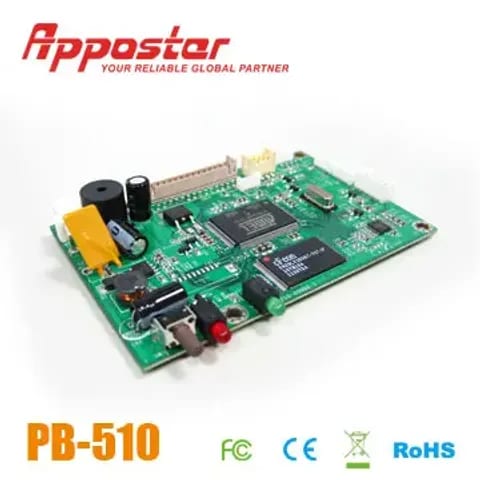

Printer Control Board

Model No.
PB-510
Made in
Taiwan
Request for Quotation

    Printing speed selectable

    Spec

    • Products Status:Stock

    Key Features

    • 60*90*20mm, minimum dimension fits in all kinds of printer housing
    • Single power source design, flexible implementation
    • Multi-layer PCB design for stable power supply, low EMI
    • Printing speed up to 220mm/sec
    • Supports darkness adjustment by command
    • Printing speed selectable
    • Command compatible to EPSON ESC/POS
    • RS232 Baurate up to 115200bps
    • Supports full speed USB 2.0
    • Various font sets built-in
    • Supports windows driver



    Specification
    Mode Name
     PB-510
    Printing Method
     Thermal line Printing
    Printing Speed
     220 mm/s
    Command
     ESC/POS
    Driver
     Windows
    Character Structure
     Alphanumeric (Font A):12 x 24
     Alphanumeric (Font B):9 x 17
     Chinese:24 x 24
    Number of Columns
     Alphanumeric (Font A):48 columns
     Alphanumeric (Font B):64 columns
     Chinese:24 columns
    Character Size (W x H)
     Alphanumeric (Font A):1.5 x 3.0 mm
     Alphanumeric (Font B):1.1 x 2.1 mm
     Chinese:3.0 x 3.0 mm
    Code page support
     Code page x 26
     Traditional or Simplified Chinese*
    Bar Code
     UPC-A/E, EAN8, EAN13, CODE39. CODE93, CODABAR, CODE128 and ITF
    Flash
     2M bytes (extendable to 4M bytes)
    RAM
     8M bytes (extendable to 16M bytes)
    Power Supply
     24V DC/2.5A
    PB510-RE
     RS232C
    PB510-TE
     TTL UART 3.3V
    PB510-UE
     USB
    Option
     Parallel, Ethernet and Bluetooth, Chinese Font
    Cash Drawer Function
     2 drivers (DC 24V)
