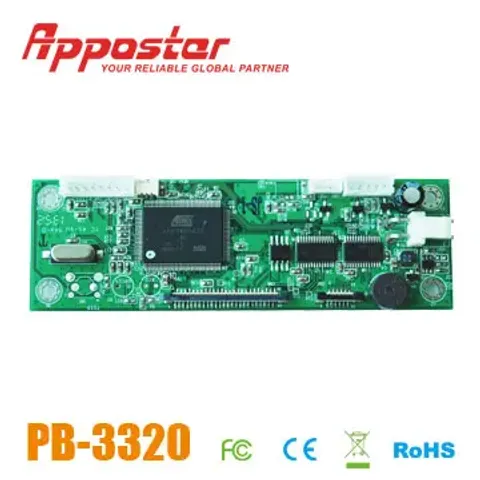

Printer Control Board

Model No.
PB-3320
Made in
Taiwan
Request for Quotation

    Printing speed selectable

    Spec

    • Products Status:Stock

    Key Features

    • Single power input design, application elasticity.
    • Multilayer circuit design, power stability, none signal radiation, anti-electromagnetic interference.
    • Command supports the printing density adjustment, the user can set their own paper and other factors.
    • Compatible with EPSON ESC / POS command.
    • RS232 transfer rate up to 115200bps.
    • Support USB 2.0 full speed.

    Specification
    Mode Name
     PB-3320
    Printing method
     Thermal line printing
    Printing speed
     180 mm/s
    TPH Dimension
     2
    Command
     ESC/POS
    Driver
     Windows and OPOS
    Alphanumeric (Font A)
     Character structure:12 x 24
     Number of columns:48 columns
     Character size(W x H):1.5 x 3.0 mm
    Alphanumeric (Font B)
     Character structure:9 x 17
     Number of columns:64 columns
     Character size(W x H):1.1 x 2.1 mm
    Chinese
     Character structure:24 x 24
     Number of columns:24 columns
     Character size(W x H):3.0 x 3.0 mm
    Density
     8 dots/mm
    Code Page Support
     26 Code Pages + Traditional or Simplified Chinese(GB2312 or GB18030)
    Bar code
     UPC-A/E, EAN8, EAN13, CODE39, CODE93, CODABAR, CODE128, ITF, QRCode
    Detectors
     Paper end, Cover, Print head overheat, and Cutter jam
    Reliability Head
     100 km
    Reliability Cutter
     500,000 times
    Memory Flash
     2 MB
    Memory RAM
     8 MB
    Interface
     Standard: RS-232C
    Environmental Specifications
    Operating temperature
     0°C ~ 45°C
    Storage temperature
     -10°C ~ 50°C
    Operating humidity
     10% ~ 90% RH
    Storage humidity
     10% ~ 90% RH
    Physical Specifications
    Dimensions(W x D x H)
     60 x 30 x 50 mm
