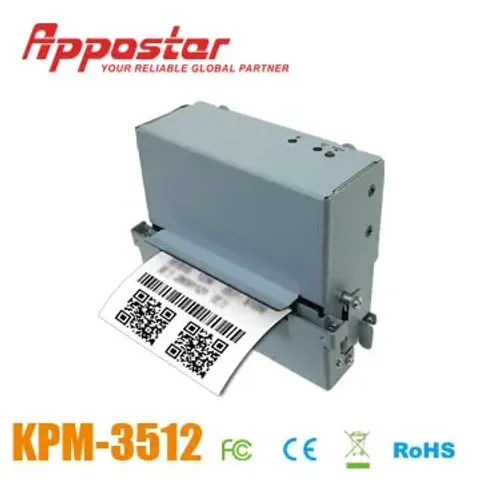

Printer Module

Model No.
KPM-3512
Made in
Taiwan
Request for Quotation

    Auto Feeding

    Spec

    • Printer:POS Printer,Receipt Printer
    • Type:POS Accessories

    Key Features

    APPOSTAR thermal printer modules of KPM series are able to serve supervised, semisupervised
    or unsupervised kiosks and vending machine. It should be automatic ticketing for
    parking, passes, ATMs or public transport.


    • Auto Feeding
    • 2”/3” TPH
    • Simplified Chinese (GB18030)
    • Dual QR-Code
    • USB / RS232C
    • ESC / POS Compatibility
    • Auto Cutter

    Specification
    System
    Printing Method
     Thermal line Printing
    Total Dots
     576 dots / line
    Printing resolution
     150 mm/s
    Command
     ESC / POS
    Driver
     Windows and OPOS
    Font A
     Character Structure: 12 x 24
     Number of Columns:48 columns
     Character Size (W x H):1.5 x 3.0 mm
    Font B
     Character Structure: 9 x 17
     Number of Columns:64 columns
     Character Size (W x H):1.1 x 2.1 mm
    Chinese
     Character Structure: 24 x 24
     Number of Columns:24 columns
     Character Size (W x H):3.0 x 3.0 mm
    Density
     8 dots / mm
    Fonts
     KATAKANA, PC437, PC737, PC850, PC851, PC852, PC855, PC858, PC860,
    PC861, PC862, PC863, PC864, PC866, PC869, PC928, PC3843, PC3844,
    PC3845, PC3846, WPC1250, WPC1251, WPC1252, WPC1253, WPC1256,
    WPC1257, Traditional / Simplified Chinese (GB2312), Simplified Chinese
    (GB18030) Optional
    Bar Code
     UPC-A/E,EAN8,EAN13,CODE39,CODE93,CODABAR,CODE128, ITF and QR Code
    Reliability Head
     100 km
    Reliability Cutter
     500,000 times
    Memory Flash
     2M bytes (extendable to 4M bytes)
    Memory RAM
     8M bytes (extendable to 16M bytes)
    Sensors
    Temperature Detection
     Thermistor
    Paper Detection
     Photo-Interrupter
    Head-up
     Mechanical switch
    Printing Width
     72 mm
    Paper Width
     80 mm
    Power Consumption
    Voltage Input
     DC 21.6 - 26.4V
    Interface
     USB, RS232C
    Environment
    EMC & Safety
     CE / FCC Class A
    Operating Temperature
     0°C~50°C
    Storage Temperature
     -10°C~50°C
    Operating Humidity
     10%~90% RH
    Storage Humidity
     10%~90% RH
    Mechanical
    Dimension (W x D x H)
     50 x 100 x 110 mm
    Weight (N.W.)
     500 g
