Printer Module

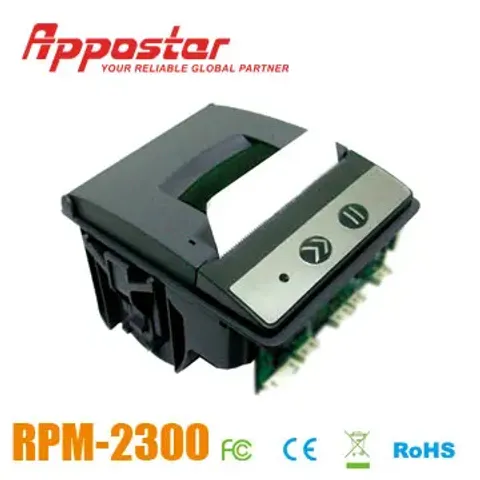

Model No.
RPM-2300
Made in
Taiwan
Request for Quotation

    Drop-in paper loading

    Spec

    • Printer:POS Printer,Receipt Printer
    • Type:POS Accessories

    Key Features

    APPOSTAR thermal printers module of RPM series are able to serve supervised, semisupervised
    or unsupervised kiosks and vending. It should be automatic ticketing for parking,
    passes, theatres, ATMs or public transport , automatic distributors and control access.




    • Drop-in paper loading
    • USB / RS232
    • QR-Code
    • Integrated Paper Feed Button and LED
    • Simplified Chinese (GB18030)
    • ESC / POS Compatibility

    Specification
    System
    Printing Method
     Thermal
    Number of dots
     384 dots
    Dot Density
     8 dots / mm
    Printing Speed
     90 mm / s
    Interface
     RS232, USB
    Bar Code
     UPC-A / E, EAN8, EAN13, CODE39, CODE93,CODABAR, CODE128 and ITF
    Driver
     Windows and OPOS
    Function Keyboard
     Yes
    Font
     KATAKANA, PC437, PC737, PC850, PC851, PC852, PC855, PC858, PC860, PC861, PC862, PC863, PC864, PC866, PC869, PC928, PC3843, PC3844,PC3845, PC3846, WPC1250, WPC1251, WPC1252, WPC1253, WPC1256,WPC1257, Traditional / Simplified Chinese (GB2312), Simplified Chinese(GB18030) Optional
    Font A
     Character Structure: 12 x 24
     Number of Columns:48 columns
     Character Size(WxH):1.5x3.0mm
    Font B
     Character Structure: 9x 17
     Number of Columns:64 columns
     Character Size(WxH):1.1x3.0mm
    Chinese
     Character Structure: 24 x 24
     Number of Columns:24 columns
     Character Size(WxH):3.0x3.0 mm
    Sensors
    Paper Detection
     Head-up or Cover-open Detection
    Temperature Detection
     Themistor
    Paper Consumption
    Printing Width
     48 mm
    Paper Width
     58 mm
    Max. Paper Thickness
     80u
    Paper Loading
     Easy Loading
    Maximum Paper Roll Diameter
     60 mm
    Environment
    Operating Temperature
     0°C~45°C
    Operating Humidity
     10%~90%
    Mechanical
    Mount Size (W x D)
     72.8 x 102.2 mm
    Dimension(W x D x H)
     81.6 x 106 x 69 mm
    Weight (N.W.)
     90 g
