Drop-in paper loading
Spec
- Printer:POS Printer,Receipt Printer
- Type:POS Accessories
Key Features

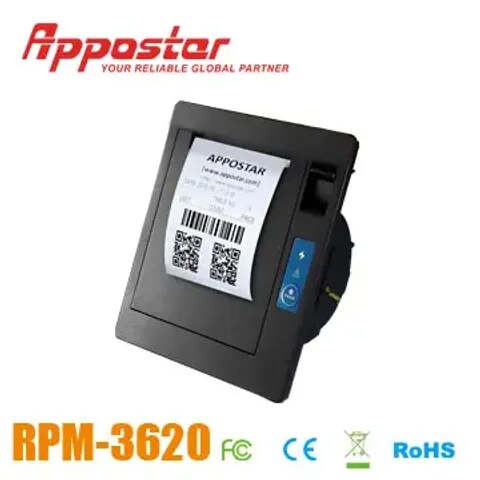

APPOSTAR thermal printers module of RPM series are able to serve supervised, semisupervised
or unsupervised kiosks and vending. It should be automatic ticketing for parking,
passes, theatres, ATMs or public transport , automatic distributors and control access.
- Drop-in paper loading
- USB / RS232
- 3” TPH
- QR-Code
- Simplified Chinese (GB18030)
- ESC / POS Compatibility
Specification
| System | |
| Printing Method | Direct Thermal Printing |
| Number of dots | 576 dots |
| Dot Density | 8 dots / mm |
| Printing Speed | 150 mm / s |
| Interface | RS232, USB |
| Bar Code | UPC-A / E,EAN8,EAN13, CODE39, CODE93, CODABAR, CODE128 ITF and QR CODE |
| Driver | Windows and OPOS |
| Font | KATAKANA, PC437, PC737, PC850, PC851, PC852, PC855, PC858, PC860, PC861, PC862, PC863, PC864, PC866, PC869, PC928, PC3843, PC3844, PC3845, PC3846, WPC1250, WPC1251, WPC1252, WPC1253, WPC1256, WPC1257, Traditional / Simplified Chinese (GB2312), Simplified Chinese (GB18030) Optional |
| Font A | Character Structure: 12 x 24 Number of Columns:48 columns Character Size(WxH):1.5x3.0mm |
| Font B | Character Structure: 9x 17 Number of Columns:64 columns Character Size(WxH):1.1x3.0mm |
| Chinese | Character Structure: 24 x 24 Number of Columns:24 columns Character Size(WxH):3.0x3.0 mm |
| Sensors | |
| Paper Detection | Paper end, Cover, Printing head overheat and Cutter Jam |
| Temperature Detection | Themistor |
| Paper Consumption | |
| Printing Width | 72 mm |
| Paper Width | 80 mm |
| Max. Paper Thickness | 80u |
| Paper Loading | Easy Loading |
| Maximum Paper Roll Diameter | 80 mm |
| Environment | |
| Operating Temperature | 0°C~45°C |
| Operating Humidity | 10%~90% |
| Mechanical | |
| Dimension (W x D x H) | 99 x 144 x 158 mm |
| Weight (N.W.) | 550 g |
