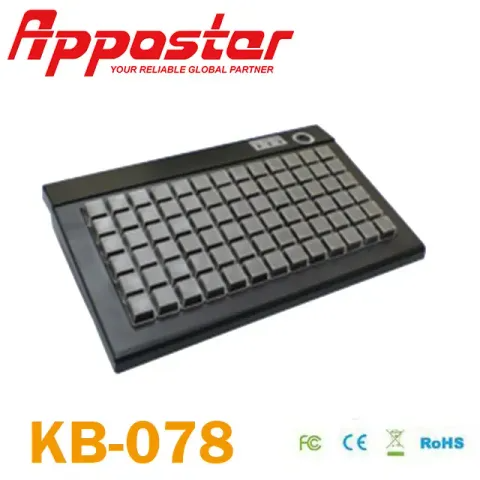

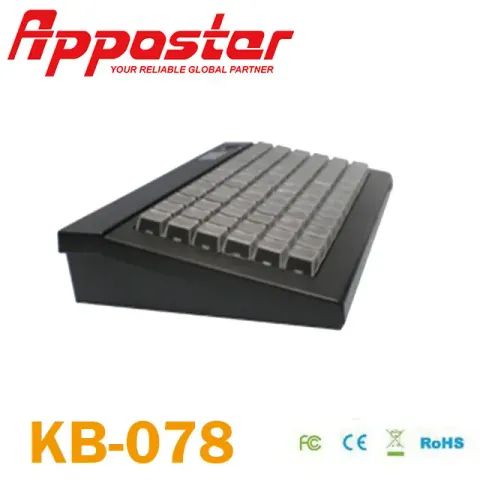

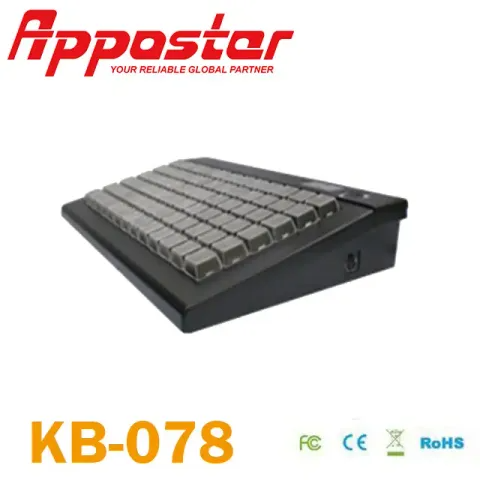

Programmable Keyboard

Model No.
KB-078
Made in
Taiwan
Request for Quotation

    Can greatly enhance your POS system

    Spec

    • Printer:Bar Code Thermal Printer,Invoice Printer,POS Printer,Receipt Printer
    • Type:POS Accessories

    Key Features

    • Each Key programs up to 3 characters
    • MTBF of switch: 20 million
    • Six key position
    • Full travel mechanical switches
    • Key lock provides on/off control
    • 1x1, 1x2, and 2x2 key top are available
    • Optional Built-in Magnetic card reader
    Specification
    System
    OS
    Windows 98, ME, 2000, XP, Vista 32
    Physical
    Material
    ABS
    Interface
    PS/2
    Key switch
    Membrane or mechanical ( Option)
    Cable length
    2800 mm
    Travel distance
    4 ±0.5 mm
    Operating life cycles
    10million strokes
    6 Position Key Lock & Keys
    Standard
    Magnetic card reader(Option)
    Card Density
    Track 1: 210 bpi with max. 76 characters
    Track 2: 75 bpi with max. 37 characters
    Track 3: 210bpi with max. 107 characters
    Magnetic Tracks
    Track 1 or Track 2 or Track 3 or Dual Track (Track 1&2 or Track 2&3) or Three Track (Track 1&2&3)
    Card Swipe Speed
    10 to 100 cm/sec
