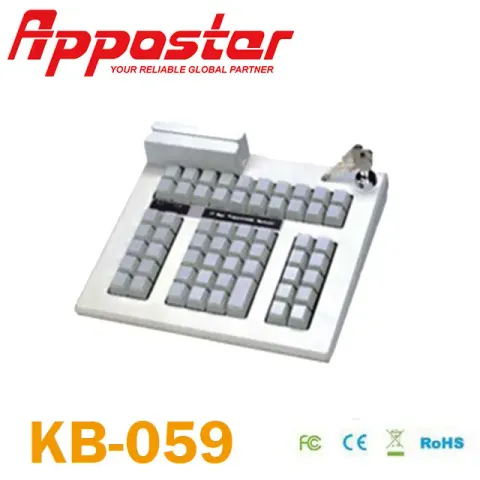

Programmable Keyboard

Model No.
PKB-59
Made in
Taiwan
Request for Quotation

    Can greatly enhance your POS system

    Spec

    • Printer:Bar Code Thermal Printer,Invoice Printer,POS Printer,Receipt Printer
    • Type:POS Accessories

    Key Features

    • Comply with ISO and JIS standards
    • Availble for KN wedge, USB and RS-232 interface
    • Programming utility to set CR, sentinel, etc.Three kinds of cable outlet option
    Specification
    Physical
    Key pitch
     19.05mm
    Key stroke
     4mm
    Operating force
     60±20g
    Rollover method
     Psedo N-Key rollover
    Key switch contact
    resistance
     < 200 m OHMS, Tyr. 25M OHMS
    Key switch bouncing
    time
     ≤ 5 ms
    Key switch lifetime
     20 million operations per key
    Magnetic card reader
    Standard
     ISO standards
    Reader selectable
     Dual track or triple track
    Built-in decoder
     Programmed by the setup manual
    Environment
    Operating temperature
     5℃~45℃
    Storage temperature
     10℃~60℃
    Relative humidity
     10%~90%
    Power
    Power supply
     5V DC
    Current
     300mA(Keyboard only)
    Mechanical
    Dimension (W x D x H)
     245 x 215 x 40 mm
