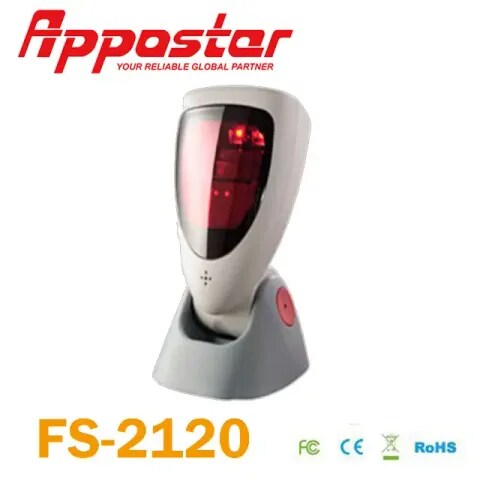

Scanner

Model No.
FS-2120
Made in
Taiwan
Request for Quotation

    Spec

    • Printer:Bar Code Thermal Printer
    • Type:POS Accessories

    Key Features

    • Read the most common 1D, 2D, composite and stacked codes to reduce your investment cost.

    • STAR code reconstruction technique allows easy reading of truncated, damaged and substandard bar codes.

    • Good ability to scan virtually mobile bar code on various types of display.

    • Compact footprint to fit in the most space constrained areas.

    • Adjustable scan head can be tilted forward and backward up to 102° range for best accommodation.

    • Durable with IP42 rating and 1m drop resistance(with cable).

    • Automatic sleep and wake-up mode reduces power consumption and extends life time.

    Model Name
    FS-2120
    Scanner Characteristics
    Light Source
    625nm± 5 nm Red LED
    Depth of Field
    300mm@20mil / 0.5mm, Code 39
    View of field
    40° horizontal, 25° vertical
    Scan rate / Pattern
    120 fps in 1D emulation
    60 fps in full frame(2D) mode
    Resolution
    1D-4mil / 0.1mm, 2D-5mil / 0.127mm
    Print Contrast ratio
    30%
    Indicator
    Beeper and LED (Stand by-Blue, Good read-Orange)
    Interface
    USB or RS232
    Barcode types
    1D
    UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals, ISBN, ISSN, Coupon Code), Code 39, Code 32, Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA , Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar (Omni-directional, Truncated, Stacked, Stacked GS1 DataBar (Omni-directional, Truncated, Stacked, Stacked Omni-directional, Limited, Expanded, Expanded Stacked), U.S. Postnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB
    2D
    PDF417 (Standard, Macro), MicroPDF417 (Standard, Macro), Composite Codes (CC-A, CC-B, CC-C), TL C-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro)
    Electrical ( Power Consumptions )
    Rush Power
    DC +5 V, 500mA (typical)
    Operating Power
    DC +5 V, 270mA (typical)
    Standby Power
    DC +5 V, 250mA (typical)
    Power Consumption
    1.35W
    Physical Characteristics
    Depth
    97.71mm / 3.84 inch
    Width
    85 mm / 3.35 inch (scanner), 94 mm / 3.70 inch (base)
    Height
    161.51 mm / 6.36 inch
    Weight
    325 g / 12.425 oz
    Color
    Black (Scanner+Base) or Beige (Scanner) + Dark Gray (Base)
    Tilted
    22° forward or 80° backward
    Environmental
    Ambient Light
    Up to 100,000 Lux
    Operating Temperature
    0°C ~ 40°C (32°F ~ 104°F)
    Storage Temperature
    -20°C ~ 60°C (-4°F ~ 140°F)
    Humidity
    5% ~ 95% RH (non-condensing dew)
    Sealing
    IP42
    Drop
    1M
    Safety
    Regulatory of compilance
    CE, FCC, RoHs
    Electrical Safety
    EN 60950-1: 2001; CE/FCC
    EM Compatibility
    Radio and TV Interference
    N 55024 / 22,FCC Part 15 class B,CNS 13438
    Electro Static Discharge
    IEC 801-2 (1991)
