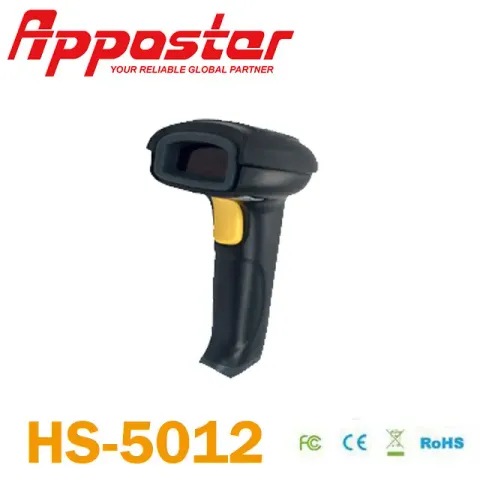

Scanner

Model No.
HS-5012
Made in
Taiwan
Request for Quotation

    At an unbeatable performance

    Spec

    • Printer:Bar Code Thermal Printer,Invoice Printer,POS Printer,Receipt Printer
    • Type:POS Accessories

    Key Features

    Most popular 1D barcodes at an unbeatable performance, Ideal resolution for retail and general commercial applications.

    • Auto discriminate barcodes
    • Laser 100 scan / sec
    • Flexible custom configuraion
    • Light weight for minimum fatigue
    • Low power consumption
    • Powerful build-in decoder
    • Drop resistance on concrete surface

    Specification
    Scanner Characteristics
    Light Source
     650 nm VLD
    Depth of Field
     10 - 450mm (100% UPC / EAN)
    Scan Rate
     100 scans per second Automatic
    Resolution
     3mil / 0.7mm PCS90%
    Print Contrast ratio
     30%
    Indicator
     Beep and LED
    Scanning Angle
     Inclination angle 45°, Elevation angle 60°
    Decode Capability
     UPC\EAN, UPC\EAN with Supplementals, UCC\EAN 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5,Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI,
    Code 11, RSS variants, Chinese 2 of 5
    Interfaces Supported
     RS232C, KBW, USB
    Input Voltage
     100mA / DC +5VDC ± 5%
    Drop Resistance
     1.5m
    Environment
    Operating Temperature
     0 °C to 50 °C (32 °F to 122 °F)
    Storage Temperature
     -20 °C to 70 °C (-4 °F to 158 °F)
    Mechanical
    Housing Color
     Black
    Environmental
     CDRH Class 2 Laser Product, FCC class B and CE
    Dimensions (W x H x L)
     68 x 83 x 156mm
    Weight (N.W.)
     285g (with stand)
