Scanner

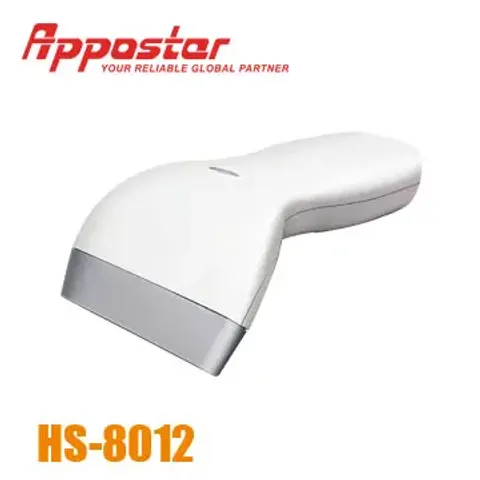

Model No.
HS-8012
Made in
Taiwan
Request for Quotation

    At an unbeatable performance

    Spec

    • Printer:Bar Code Thermal Printer,Invoice Printer,POS Printer,Receipt Printer
    • Type:POS Accessories

    Key Features

    Most popular 1D barcodes at an unbeatable performance, Ideal resolution for retail and general commercial applications.
    • Contact type linear imager bar code scanner
    • Contact read 80mm bar code at window
    • Retail and general commercial applications
    • Compatible with most host systems through "all-in-one" universal interface
    • Folio style and ergonomic design
    • Reads most 1D bar code symbologies include GS1 Databar codes

    Specification
    Scanner Characteristics
    Light Source
     632nm Red LED
    Depth of Field
     Contact to 50mm @ 20mil / 0.5mm, PCS90%, Code39
    Scan Rate
     120 scans per second ± 10%
    Resolution
     4mil / 0.1mm PCS90%
    Print Contrast ratio
     30%
    Indicator
     Beep and LED (Good read Green)
    Width of Field
     90mm (80mm at window)
    Decode Capability
     GS1 DataBar, UPC / EAN / JAN,Code 39, EAN128, Full ASCII, Code 128, Inteleave 25, Martrix 25, CODABAR / NW7, Code11, MSI / PLESSEY, Code93, China Postage, Code 32 / Italian Phammacy
    Interfaces Supported
     RS232, KBW, USB and USB virtual com
    Input Voltage
     124mA / DC +5V ± 5%
    Drop Resistance
     1.2m
    Environment
    Operating Temperature
     0 °C to 50 °C (32 °F to 122 °F)
    Storage Temperature
     -20 °C to 70 °C (-4 °F to 158 °F)
    Mechanical
    Housing Color
     Black, White
    Environmental
     CE/FCC
    Dimensions (W x H x L)
     90 x 56.2 x 173.5mm
    Weight (N.W.)
     138g (w / o cable)
