Scanner

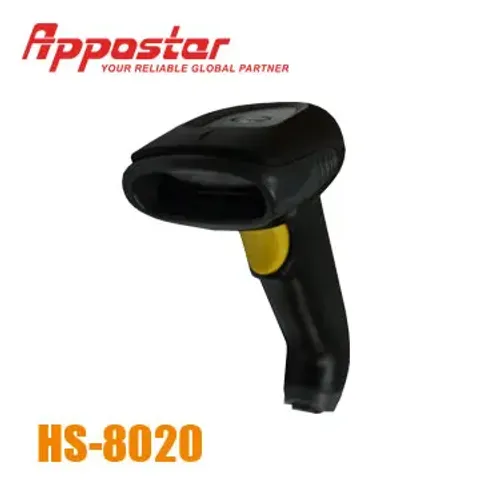

Model No.
HS-8020
Made in
Taiwan
Request for Quotation

    At an unbeatable performance

    Spec

    • Printer:Bar Code Thermal Printer,Invoice Printer,POS Printer,Receipt Printer
    • Type:POS Accessories

    Key Features

    Most popular 1D barcodes at an unbeatable performance, Ideal resolution for retail and general commercial applications.
    • User’s friendly and Plug & Play (PnP) design
    • Built with liner imager long range CCD engine to supports 200mm scanning distance at 20mil
    • Specialized design scanner for USB connection at competitive price
    • Supports most popular barcode symbology



    Specification
    Scanner Characteristics
    Light Source
     660 nm
    Depth of Field
     175mm @ 13mil, PCS 90%
    Scan Rate
     200 scans per second
    Resolution
     4mil/0.1mm PCS90%
    Print Contrast ratio
     30%
    Indicator
     Beep and LED
    Scanning Angle
     Inclination angle 45°
    Decode Capability
     All UPC/EAN/JAN (EAN13, EAN8,UPC-A, UPC-E , EAN128), Code 39, Full ASCII Code 39, Code32, Code 128, CODABAR/NW7, Interleave 25, Standard 25, Industrial 25, Matrix 25, MSI/PLESSEY, Telepen, Code 93, Code 11, China Postage Code, IATA, Italian Pharmacy Code
    Interfaces Supported
     USB HID
    Input Voltage
     120mA / DC +5V ± 5%
    Drop Resistance
     1m
    Environment
    Operating Temperature
     0°C to 50°C (32 °F to 122 °F)
    Storage Temperature
     -25°C to 60°C (-13°F to 140°F)
    Mechanical
    Housing Color
     Black
    Environmental
     CE/FCC
    Dimensions
    (W x H x L)
     86 x 60 x 160mm
    Weight (N.W.)
     290g
