Scanner

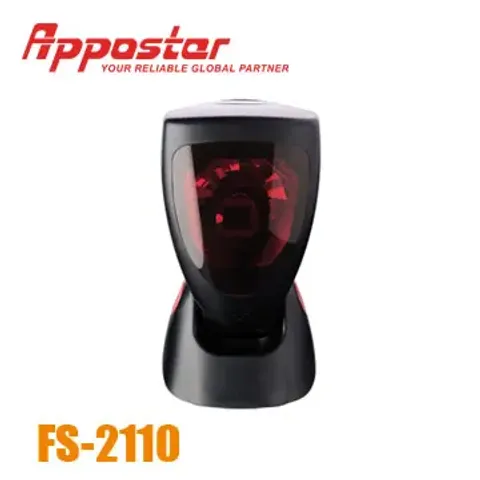

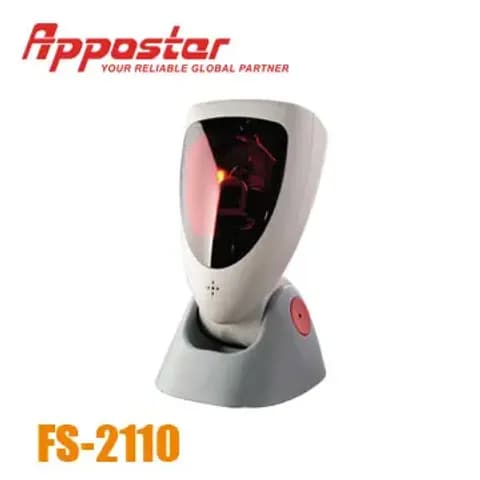

Model No.
FS-2110
Made in
Taiwan
Request for Quotation

    At an unbeatable performance

    Spec

    • Printer:Bar Code Thermal Printer
    • Type:Bar Code Inventory Machines

    Key Features

    Most popular 1D barcodes at an unbeatable performance, Ideal resolution for retail and general commercial applications.

    • The competitive pricing and higher performance of scanner amongst competitor’s model in its class
    • Focuses on its durable characteristic with IP 42 rating and 1m drop resistance
    • Reading all 1D standard barcodes, includes GS1 Databar codes
    • Auto-sense function saves power for improve life time Lightweight and ergonomic design
    • Space constrained areas
    • Multi-interface solution
    • Wallmount hanging for easy installation
    • Scanner head can be forward and backward adjusted in a total 102° range to accommodate to your application need.
    • EAS compatible

    Specification
    Scanner Characteristics
    Light Source
     650 nm VLD ± 10nm
    Depth of Field
     Up to 230 mm@13mil / 0.33mm, PCS 90%
    Scan Rate
     2,000 scans per second
    Resolution
     5mil / 0.127mm PCS90%
    Print Contrast ratio
     30%
    Indicator
     Beeper and LED (Stand by Blue, Good read Orange)
    Scanning Angle
     102°
    Scan Pattern
     6 direction scan field,24 lines scan pattern
    Decode Capability
     EAN / UPC / JAN + Add-on, ISBN, Code 128, EAN 128, Code 93, Code 39,Code 32, Codabar,Interleaved 2 of 5, MSI–Plessey, GS1 DataBar
    Interfaces Supported
     RS232, KBW, USB and USB virtual com
    Input Voltage
     340mA / DC +5V ± 5%
    Drop Resistance
     1m
    Environment
    Operating Temperature
     0°C ~ 40°C (32°F ~ 104°F)
    Storage Temperature
     -20°C ~ 60°C (-4°F ~ 140°F)
    Mechanical
    Housing Color
     Black, White
    Environmental
     IEC 825-1 (2001) Class I, U.S. CDRH Class II a CE, FCC and RoHs compliant
    Dimensions (W x H x L)
     94 x 161.51 x 97.71mm
    Weight (N.W.)
     350g
