Scanner

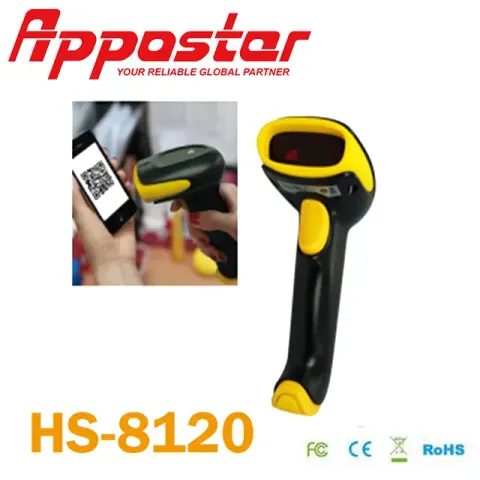

Model No.
HS-8120
Made in
Taiwan
Request for Quotation

    At an unbeatable performance

    Spec

    • Printer:Bar Code Thermal Printer,Invoice Printer,POS Printer,Receipt Printer
    • Type:POS Accessories

    Key Features

    • Cost-effective: The competitive pricing and higher performance of 2D scanner amongst competitor’s model in its class.
    • Compact, lightweight, user-friendly design: fast and accurate scanning, elegant and ergonomic design allows for a natural and comfortable grip.
    • Versatile scanning modes: supports both manual and presentation scanning mode with automatic object detection and scanning.
    • Advanced decoding software: cutting-edge decoding technology, able to scan both 1D and 2D barcodes fast and accurately.
    • Reliable data capture ability: supports most standard 1D and mainstream 2D symbology, as well as those on electronic screens (such as mobile phones).
    • Future-proof investment: protects your future investment with 2D capability at an affordable price meeting both current and future barcode scanning needs.
    Specification
    Scanner Characteristics
    Light Source
    617nm Red LED
    Depth of Field
    23 -200mm @20 mil QR
    Resolution
    4mil
    Print Contrast ratio
    35%
    Indicator
    Beep and LED (Good read Green)
    Scanning Angle
    Pitch ± 70 °, Tilt ± 60 °, Rotation ± 180 °
    Decode Capability
    Supports most standard 1D and mainstream 2D symbology, as well as those on electronic screens (such as mobile phones) 5 mil Code39 33 - 95 mm (1.3 - 3.7 in.) 13 mil UPC-A 32 - 255 mm (1.3 - 10.0 in.) 20 mil Code 39 35 - 355 mm (1.4 - 14.0 in.) 6.7 mil PDF417 30 - 95 mm (1.2 - 3.7 in.) 10mil Data Matrix 30 - 100 mm (1.2 - 3.9 in.) 15mil Data Matrix 21 -162 mm (0.8 -6.4 in.) 20mil QR 23 -200 mm (0.9 -7.9 in.)
    Interfaces Supported
    KBW, USB
    Input Voltage
    400ma / DC 5V ± 5%
    Drop Resistance
    1m
    Scan Pattern
    Environment
    Operating Temperature
    0°C ~ 40°C (32°F ~ 104°F)
    Storage Temperature
    -40°C ~ 60°C (-6.2°F ~ 140°F)
    Mechanical
    Housing Color
    Black
    Environmental
    IEC62471, IEC60950, GOST-R, CE, FCC
    Dimensions(W x H x L)
    W170 x H85 x L170mm
    Weight (N.W.)
    120g
