Save your budget twice
Spec
- Printer:POS Printer,Receipt Printer
- Type:POS Customer Displays / Monitors

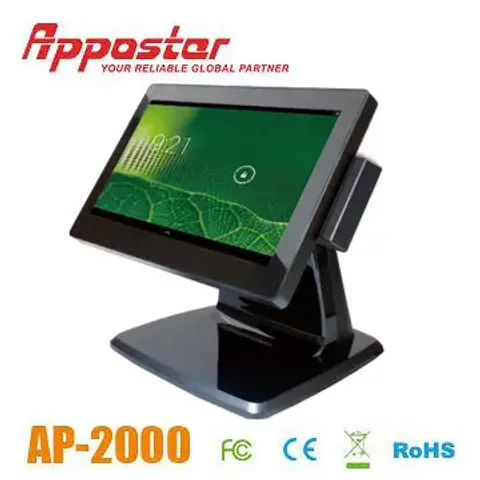

Key Features
Low expense and no OS cost, save your budget twice. Absolute solution for retail and hospitality!
● Android 4.2
● 2nd LCD creates interactive display
● Zero cost for operation system
● 12" LED LCD resistive or 15"capacitive touch monitor
● WiFi and Bluetooth optional
● Low power consumption
● Fanless solution / Easy maintenance
Specification
System
Main board:i.MX6DL
CPU:Dual Core 1GHz
Main Memory:1G (2GB / 4GB optional)
OS Storage:16GB (32GB optional)
Display Size:12"TFT LED-LCD with touch panel
Display Resolution:1366 x 768
Touch Panel:5 Wire Resistive Touch (True Flat / Capacitive Touch optional)
OS Support:Android 4.2
Power:AC 100V~240V/DC12V5A
External I/O Interface
Serial Port:2 x DB9 (4 Wire COM Port)
1 x RJ45 (4 Wire COM Port)
Cash Drawer:1 X RJ11 Connector 12V (Default) / 24V
VGA Port:1 x HDMI / 1 x VGA (Optional)
VGA Port:1 x Micro SD Slot
Speaker:2 x 1W Internal Speakers
LAN:10 / 100 / 1000 bps
USB Port:4 x USB 2.0 Type A , 1 x Micro USB(OTG)
Power Button:1 x Power on / off switch
Optional Peripheral
Magnetic Card Reader:ISO 7811 option 1 / 2 / 3 track
Finger Print:512dpi x 8bit gray scale, Capture area: 14.6 x 18.1 mm
i-button:Dallas Key
Wireless LAN:802.11 a / b / g / n
Customer Display:VFD / LCD customer display
Environment
EMC & Safety:CE / FCC Class A
Operating Temperature:5°C ~ 40°C
Storage Temperature:-20°C ~ 60°C
Operating Humidity:15%~80% RH
Storage Humidity:20% ~90% RH
Mechanical
Housing Color:Black
Dimension (W x D x H):303 x 242 x 264 mm
Weight (N.W):3.3 kg
