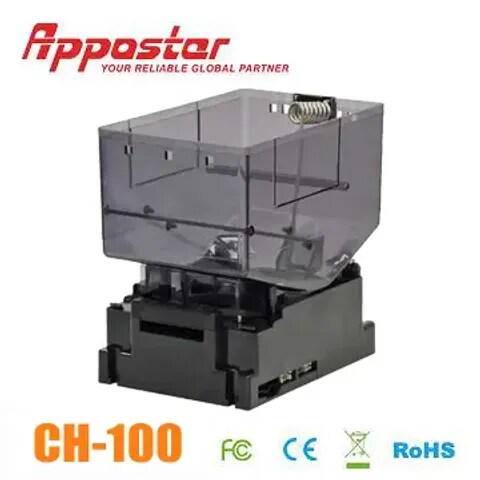

Coin Hopper

Model No.
CH-100
Made in
Taiwan
Request for Quotation

    Easy-operated and high reliability

    Spec

    • Printer:POS Printer
    • Type:POS Accessories

    Key Features

    The CH-100 is a coin dispensing unit for one denomination.Users can adjust the coin dimension with different coin payout plates and coin adjustment points.

    ● Dual sensors, double protections
    ● Easy maintenance
    ● Easy installation
    ● Coin size adjustable
    ● Advanced coin low level detection
    ● Compact design with enormous capacity

    Specification
    General
    Dispensing Speed
     12V DC: 5 ~ 6 coins/second
     24V DC: 6 ~ 8 coins/second
    Interface
     Pulse, ICT, Hopper, ccTalk, Red Flag
    Counting Method
     Dual sensors
    Installation
     Indoor
    Electrical
    Power Source
     MH-12XXX: 12V DC (11.4 ~ 12.6V DC)
     MH-24XXX: 24V DC (22.8 ~ 25.2V DC)
    Power consumption
     12V DC: Standby: 0.05A, 0.6W
                   Not loaded: 0.75A, 9W
                   Maximum: 2.5A, 30W
     24V DC: Standby: 0.05A, 1.2W
                   Not loaded: 0.45A, 10.8W
                   Maximum: 2.5A, 60W
    Operation Environment
     Operation Temperature: 5°C ~ 50°C
     Storage Temperature: -30°C ~ 70°C
     Humidity: 30% ~ 85% RH (no condensation)
    Mechanical
    Coin Capacity
     Approx. 500 coins
    Outline Dimension
     157.3 x 105 x 150.7 mm
    Weight
     Approx. 0.8kg
