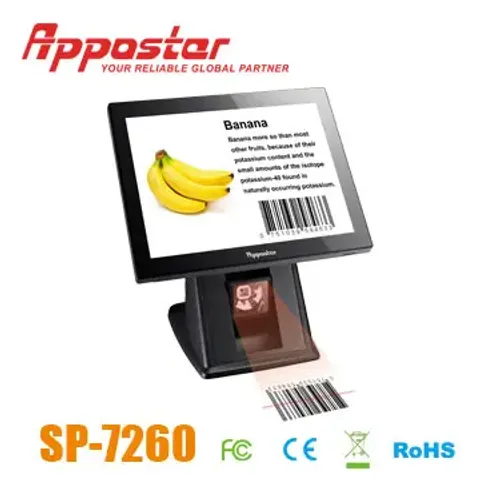

Quick-swap design scanner module
Spec
- Printer:POS Printer,Receipt Printer
- Type:POS Customer Displays / Monitors
Key Features
With the quick-swap design scanner module, the SP series fulfills the most applications in space-conscious retail or hospitality.
- Easy Maintenance
- Compact and space saving
- Splash-resistant on frontal
- Multiple I / O ports for peripheral connection
- Easy Angle adjustable
- MSR / SCR and i-Button optional
- 0°~90° Viewing angle
Specification
| System | |
| Main board | IAT1-2550 |
| CPU | Intel Atom D2550 1.8GHz Dual Core |
| Chipset | Intel NM10 Express Chipset |
| Main Memory | 1GB DDRIII RAM |
| Display Size | 15” TFT-LCD with LED backlight |
| Display Resolution | 1024 x 768 |
| HDD | 2.5” SATA HDD 320G |
| Expansion slot | 1 x Mini PCIe |
| OS Support | POSReady 2009, POSReady7, Windows XP / XPE, Windows 7, Linux |
| Power | AC 100V~240V / 60W power adapter |
| External I/O Interface | |
| Serial Port | 4 x External COM Ports with 5V / 12V selectable |
| Cash Drawer Port | 1 x RJ 11 with DC 12V (single / dual) |
| VGA Port | 1 x VGA (DB15) |
| Speaker | 2 x Integrated 1.5 W stereo speaker |
| Ethernet Port | 1 x RJ45 10M / 100 M / 1G Base-T |
| USB Port | 4 x USB 2.0 Type A |
| DC Output | 1 x 12V / 2.5A |
| Scanner Feature | |
| Light Source | 650 nm VLD |
| Depth of Field | Up to 230 mm @ 13 mil / 0.33 mm , PCS 90% |
| Scan Rate | 2000 Scans per second |
| Scan Pattern | 6 directional scan field, 24 lines scan pattern |
| Ambient lighting | 4800 LUX max |
| Barcode Type | EAN / UPC / JAN + Add-on, ISBN, Code 128, EAN 128, Code 93, Code 39, Code 32, Codabar, Interleaved 2 of 5, MSI-Plessey, GS1 DataBar compliance (symbol 1-9) |
| Optional Peripheral | |
| Magnetic Card Reader | ISO 7811 option 1 / 2 / 3 track |
| Finger Print | 512dpi x 8bit gray scale, Capture area: 14.6 x 18.1 mm |
| i-button | Dallas Key |
| Wireless LAN | 802.11 b / g |
| Customer Display | VFD / LCD Customer Display |
| Environment | |
| EMC & Safety | CE / FCC Class A |
| Operating Temperature | 5°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Operating Humidity | 15%~80% RH |
| Storage Humidity | 20% ~90% RH |
| Laser Safety | IEC 825-1 (1993) Class I, U.S. 21CFR1040 Class IIa |
| Mechanical | |
| Housing Color | Black |
| Construction | ABS + SECC |
| Dimension (W x D x H) | 355 x 240 x 390 mm |
| Weight (N.W.) | 6.7 kg |
