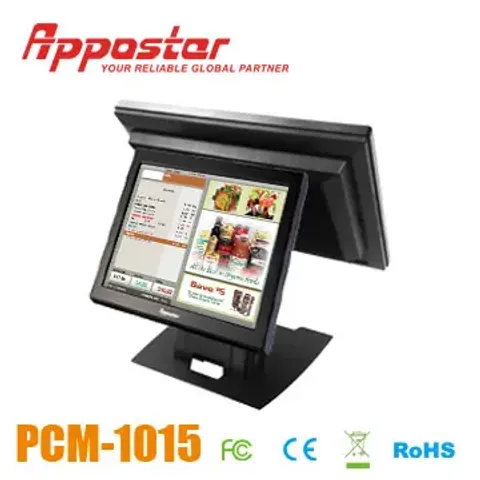

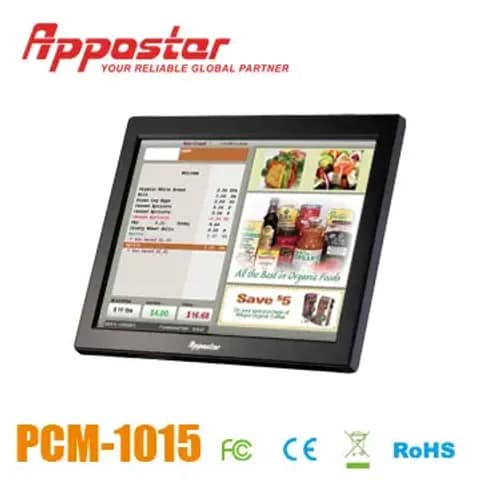

POS Monitor

Model No.
PCM-1015
Made in
Taiwan
Request for Quotation

    On-screen display design

    Spec

    • Products Status:Stock

    Key Features

    PCM Series LCD display in various size fully fits different style of shops or restaurants.

    • 5-wire resistive touch panel optional
    • On-screen display (OSD) design

    Specification
    Hardware Specification
    Display
     15” TFT LCD display panel
    Active Area
     304 (H) x 228 (V) mm
    Pixel Pitch
     0.297 x 0.297 mm
    Resolution
     1024 x 768
    White Luminance
     225 cd/m2
    Contrast Ratio
     700
    Response Time
     8 msec (Typ, on/off)
    View Angle R / L
     70 /70 (Typ)
    View Angle U /D
     70 /70 (Typ)
    External I/O Interface
    VGA Port
     1 x VGA-in (DB15)
    Power Input
     1 x 12V/2.5A DC Jack
    OSD Button
     MENU, LEFT, RIGHT, SELECT
    Power Button
     1 x on/off power switch on the bottom of monitor
    Powering
    Power Supply
     DC 12V/2.5A
    Environment
    EMC & Safety
     CE/FCC Class A
    Operating Temperature
     5°C ~ 40°C
    Storage Temperature
     -20°C ~ 60°C
    Operating Humidity
     15%~80% RH
    Storage Humidity
     20% ~90% RH
    Mechanical
    Housing Color
     Cool White, Dark Gray
    Construction
     ABS + SECC
    Dimension (W x D x H)
     355 x 320 x 58 mm
    Weight (N.W.)
     3.4 kg
