POS Printer

Model No.
RTP-3280
Made in
Taiwan
Request for Quotation

    With its high speed printing

    Spec

    • Printer:POS Printer,Receipt Printer
    • Type:POS Customer Displays / Monitors

    Key Features

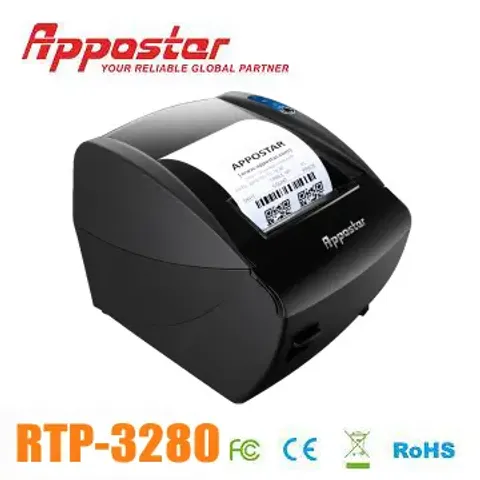

    With its high speed printing, the RTP thermal printer is ideal for retail market with long queue at the cashier. Drop-in easy paper loading and dual interface.



    • Drop-in paper loading
    • Compact and stylish
    • Paper end / near end sensor
    • Dual Interface
    • Low noise thermal printing
    • 203dpi @ 220 mm / sec printing speed
    • Cutter life 1 Million cuts

    Specification
    System
    Printing Method
    Thermal line Printing
    Printing Resolution
    203dpi
    Printing Speed
    200 mm
    Command
    ESC / POS
    Driver
    Windows / OPOS / Linux / Android
    Alphanumeric (Font A)
    Character Structure: 12 x 24
    Number of Columns: 48 columns
    Character Size (WxH): 1.5 x 3.0mm
    Alphanumeric (Font B)
    Character Structure: 9 x 17
    Number of Columns: 64 columns
    Character Size (WxH): 1.1 x 2.1mm
    Chinese
    Character Structure: 24 x 24
    Number of Columns: 24 columns
    Character Size (WxH): 3.0 x 3.0 mm
    Fonts
    KATAKANA, PC437, PC737, PC850, PC851, PC852, PC855, PC858, PC860
    PC861, PC862, PC863, PC864, PC866, PC869, PC928, PC3843, PC3844
    PC3845, PC3846, WPC1250, WPC1251, WPC1252, WPC1253, WPC1256
    WPC1257, Traditional / Simplified Chinese (GB2312), Simplified Chinese (GB18030) Optional
    Bar Code
    UPC-A/E, EAN8, EAN13, CODE39. CODE93, CODABAR, CODE128 ,ITF and QR Code
    Detectors
    Paper end/near end, cover open, cutter jam, overheat
    Paper Width
    80 mm
    Printing Width
    72 mm
    Paper Roll Size
    80 +0/-1 (W) x 83 mm (Diameter)
    Paper Thickness
    0.05~0.06 mm
    Reliability Head
    100 km
    Reliability Cutter
    1,000,000 cuts
    Power Supply
    24V DC / 2.5A
    Interface
    RS232+USB or Ethernet+USB or Parallel
    Cash Drawer Function
    2 drivers (DC 24V)
    Cutter
    Auto Cutter
    Paper roll
    ≤ 80mm OD thermal paper
    Environment
    Operating Temperature
    0°C~45°C
    Storage Temperature
    -10°C~50°C
    Operating Humidity
    10%~90% RH
    Storage Humidity
    10%~90% RH non-condensing
    Mechanical
    Housing Color Body
    Black, White
    Housing Color Cover
    Silver, Golden Chocolate, White
    Dimension(WxDxH)
    155 x 190 x 140 mm
    Weight (N.W.)
    1.3 kg

    Product Certification
