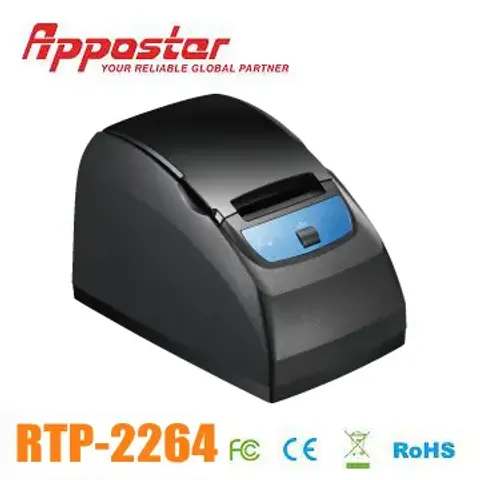

Receipt Thermal Printer

Model No.
RTP-2264
Made in
Taiwan
Request for Quotation
Contact Supplier

    With its high speed printing

    Spec

    • Printer:POS Printer,Receipt Printer
    • Type:POS Customer Displays / Monitors

    Key Features

    With its high speed printing, the RTP thermal printer is ideal for retail market with long queue at the cashier. Drop-in easy paper loading and dual interface.

    ●Drop-in paper loading
    ●Compact and stylish
    ●Paper end / near end sensor
    ●Dual Interface
    ●Low noise thermal printing
    ●203dpi @ 180 mm / sec printing speed
    ●Cutter life 1 Million cuts

    Specification
    System
    Printing Method
     Thermal line Printing
    Printing Resolution
     203dpi
    Printing Speed
     180 mm
    Command
     ESC / POS
    Driver
     Windows / OPOS / Linux / Android
    Alphanumeric (Font A)
     Character Structure: 12 x 24
     Number of Columns: 48 columns
     Character Size (WxH): 1.5 x 3.0mm
    Alphanumeric (Font B)
     Character Structure: 9 x 17
     Number of Columns: 64 columns
     Character Size (WxH): 1.1 x 2.1mm
    Chinese
     Character Structure: 24 x 24
     Number of Columns: 24 columns
     Character Size (WxH): 3.0 x 3.0 mm
    Fonts
     KATAKANA, PC437, PC737, PC850, PC851, PC852, PC855, PC858, PC860
     PC861, PC862, PC863, PC864, PC866, PC869, PC928, PC3843, PC3844
     PC3845, PC3846, WPC1250, WPC1251, WPC1252, WPC1253, WPC1256
     WPC1257, Traditional / Simplified Chinese (GB2312), Simplified Chinese (GB18030)
     Optional
    Bar Code
     UPC-A/E, EAN8, EAN13, CODE39. CODE93, CODABAR, CODE128 ,ITF and QR Code
    Detectors
     Paper end, cover open, Overheat
    Paper Width
     58 mm
    Printing Width
     48 mm
    Paper Roll Size
     80 (+0/-1) mm
    Paper Thickness
     0.054~0.091 mm
    Reliability Head
     100km
    Reliability Cutter
     1,000,000 cuts
    Power Supply
     DC 24V / 2.5A
    Interface
     RS232+USB or Ethernet+USB or Parallel
    Cash Drawer Function
     2 drivers (DC 24V)
    Cutter
     Auto Cutter
    Paper roll
     ≤ 80mm OD thermal paper
    Environment
    Operating Temperature
     0°C ~ 45°C
    Storage Temperature
     -10°C ~ 50°C
    Operating Humidity
     10°C ~ 90°C
    Storage Humidity
     10%~90% RH (Non-condensing)
    Mechanical
    Housing Color Body
     Black, White
    Dimension (W x D x H)
     109 x 176 x 116 mm
    Weight (N.W.)
     1.0kg

    Product Certification

    The FCC is responsible for managing and licensing the electromagnetic spectrum for commercial users and for non-commercial users including: state, county and local governments. This includes public safety, commercial and non-commercial fixed and mobile wireless services, broadcast television and radio, satellite and other services. In licensing the spectrum, the Commission promotes efficient and reliable access to the spectrum for a variety of innovative uses as well as promotes public safety and emergency response. FCC Licensing Systems includes: Universal Licensing System (ULS) Broadcast Radio and Television Electronic Filing System (CDBS) Cable Operations and Licensing System (COALS) International Bureau Electronic Filing System (MyIBFS) OET Experimental Licensing System Electronic Filing
    The Restriction of Hazardous Substances Directive 2002/95/EC, (RoHS 1), short for Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment, was adopted in February 2003 by the European Union. The RoHS 1 directive took effect on 1 July 2006, and is required to be enforced and became a law in each member state.[3] This directive restricts (with exceptions) the use of six hazardous materials in the manufacture of various types of electronic and electrical equipment. It is closely linked with the Waste Electrical and Electronic Equipment Directive (WEEE) 2002/96/EC which sets collection, recycling and recovery targets for electrical goods and is part of a legislative initiative to solve the problem of huge amounts of toxic electronic waste. RoHS 2002/95/EC was replaced by Dir. 2011/65/EU, 3 January 2013.
    CE Marking (EU Standards) The safety mark is a mandatory conformity mark on designated products placed on the single market in the European Union (EU). This mark is possible to be affixed to only the products that conform to the safety regulation, that the directives from the ministerial conference of the European Communities show.
